Characteristics
|
| Belt driven | LMG |
 |  |
| H | XYZ |
| Category | Item | Specification |
| Capacity | Distance between columns[mm] | 1800 |
| Travels | Stroke X[mm] | 2500 |
| Stroke Y[mm] | 1800 |
| Stroke Z[mm] | 1000 |
| Rapid traverse(X)[m/min] | 12 |
| Rapid traverse(Y)[m/min] | 15 |
| Rapid traverse(Z)[m/min] | 10 |
| Table | Workpiece allowable Load[kg] | 7000 |
| Table Size[mm] | 2500×1600 |
| Category | CNC brand | Fanuc
Siemens
|
| CNC system | 0i-MF Plus
|
| Origin | Mainland China |
Milling spindle 1(H1)
| Spindle name | | | | | | | | Taper | 7:24 taper No. 50 | | | | | | | Rotational speed[rpm] | 50~6000 | | | | | | | Power[kW] | 15!18.5 | | | | | | | Torque[Nm] | 143!236 | | | | | | | Transmission | Belt driven | | | | | | |
Tool Magazine 1
| Tool holder taper | 7:24 taper No. 50
| | | | | | | No. of tool storage[ea] | | | | | | | | Tool diameter[mm] | | | | | | | | Tool length[mm] | 300
| | | | | | | Tool weight[kg] | | | | | | | | Tool change time(TTT)[s] | | | | | | | | Tool change time(CTC)[s] | | | | | | | |
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)
Guide way
| Axis | X | Y | Z |
| Guide way | LMG | LMG | LMG |
| Qty | 2 | 2 | 2 |

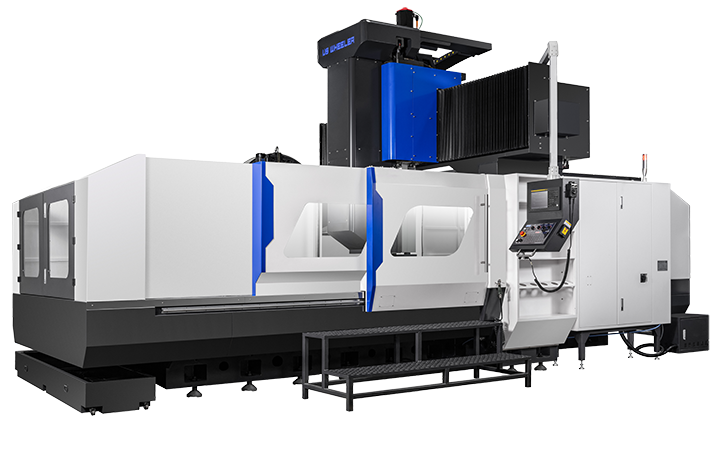

Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
